Hydraulic Toplink
Heavy Type With Ball
Stock Number
CTP320020
Add To Basket
Product varieties

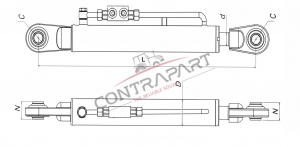

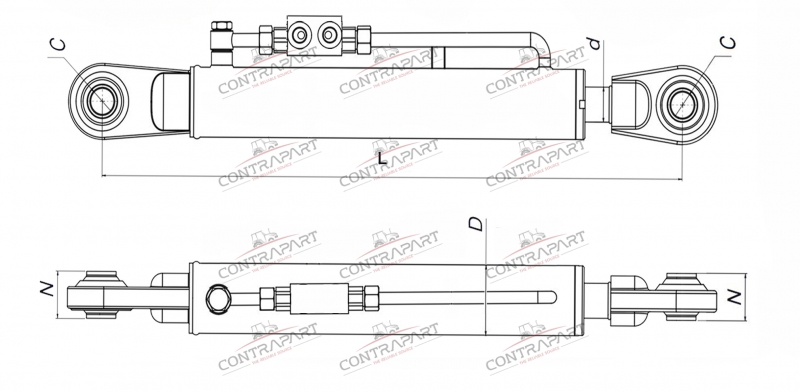

Contrapart NoClosed Length L (mm)Open Length (mm)Stroke (mm)Tube Dia (D)Rod Dia (d)C (mm)N (mm)Impulse/Pull Force ( Tonne) Transaction
CTP320020500685185Ø70 X Ø80Ø45Ø26476,5 / 5,4
CTP320021550785235Ø70 X Ø80Ø45Ø26476,5 / 5,4
CTP320022600885285Ø70 X Ø80Ø45Ø26476,5 / 5,4
CTP3200236801035355Ø70 X Ø80Ø45Ø26476,5 / 5,4
