Hydraulic Toplink
Medium Type With Hook
Stock Number
CTP320015
Add To Basket
Product varieties

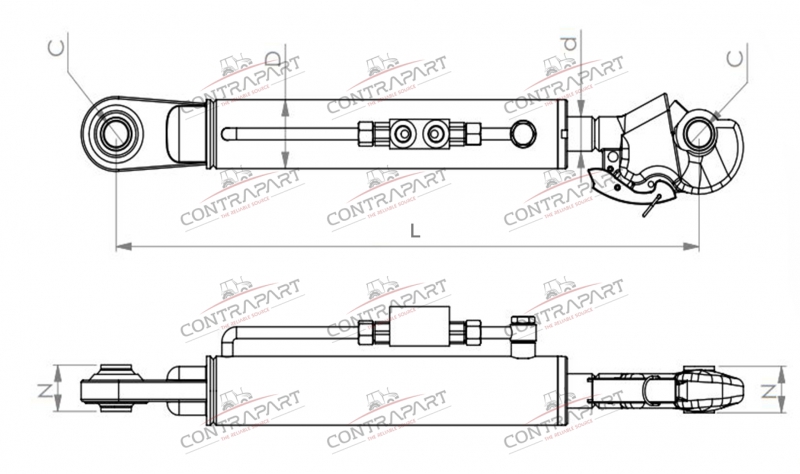

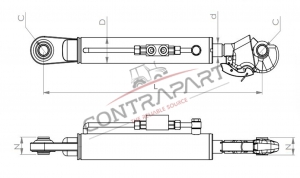

Contrapart NoClosed Length L (mm)Open Length (mm)Stroke (mm)Tube Dia (D)Rod Dia (d)C (mm)N (mm)Impulse/Pull Force ( Tonne) Transaction
CTP320015500641141Ø60 X Ø70Ø35Ø26475,6 / 3,8
CTP320016550741191Ø60 X Ø70Ø35Ø26475,6 / 3,8
CTP320017600841241Ø60 X Ø70Ø35Ø26475,6 / 3,8
CTP320018650941291Ø60 X Ø70Ø35Ø26475,6 / 3,8
CTP3200197001041341Ø60 X Ø70Ø35Ø26475,6 / 3,8
